Electric locomotives

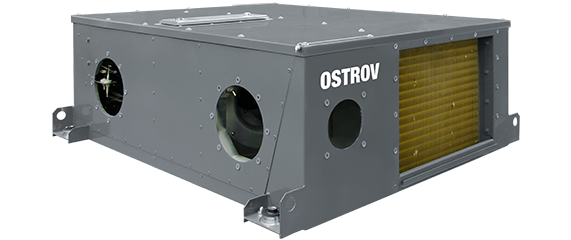

Technical data
Cooling capacity, kW | 4.5 |
Refrigerant | R134a |
Heating capacity, kW | 7.2 |
Supply air, m3/h | to 680 |
Including fresh air, m3/h | 90 |
Voltage | ~3 - 380V - 50Hz |
Power consumption (cooling / heating / ventilation), kW | 4.2 / 5 / 8 |
Dimensions and weight | |
length / width / height, mm | 1080 / 1196 / 450 |
weight, kg | 200 |
Location scheme
